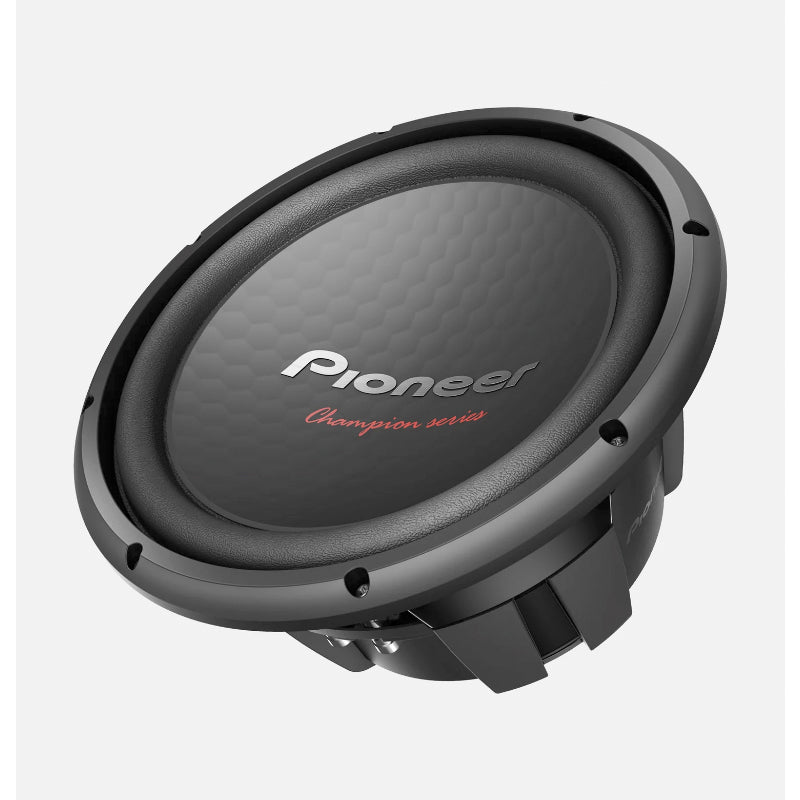

Pioneer 12″ Subwoofer Champion Series TS-W312D4 1600W Max

The TS-W312D4 boasts a powerful motor assembly. It features a robust 90oz double-stacked ferrite magnet paired with a long voice coil and aluminium bobbin. This strong motor structure ensures excellent power handling and improved heat dispersion, allowing for sustained, high-output bass without compromise. The distinctive red single spider provides precise control and stable, linear cone motion, ensuring long-term reliability under demanding conditions.

With a continuous RMS power handling of 500W and a peak power handling of 1600W, this subwoofer is ready to deliver impressive bass. The Dual 4Ω Voice Coils (DVC) offer incredible wiring versatility, allowing you to configure the subwoofer for a 2Ω or 8Ω load. This flexibility enables perfect matching with a wide range of amplifiers, optimising power delivery and system impedance for superior performance. Housed within a newly optimised steel basket design that helps decentralise the load of the heavy motor assembly and maintains accurate cone motion, the Pioneer TS-W312D4 is built for enduring performance and exceptional bass reproduction.

• SIZE: 12″
• CONTINOUS POWER HANDLING (RMS): 500W
• MAXIMUM PEAK POWER HANDLING: 1,600W
• IMPEDANCE: DUAL 4OHMS
• WOOFER COMPOSTITION: INJECTION MOLDED POLYPROPYLENE (IMPP) WITH HONEYCOMB DESIGN
• MAGNET WEIGHT: 90OZ
• MOUNTING DEPTH: 157MM
